AI People detection/AI Vehicle detection/AI Face detection i-PRO
AI applications
- AI People Detection
- AI Vehicle Detection
- AI Face Detection
AI People Detection

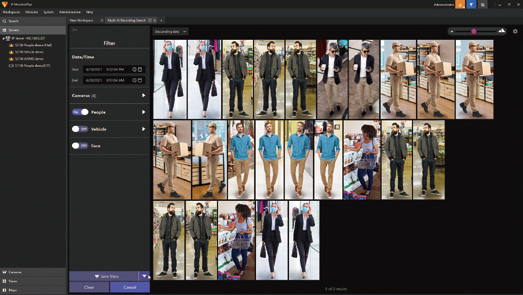

Characteristics of the human face and clothing are extracted and classified into useful categories such as gender, age, and clothing color. This abundant attribute information can then be searched to easily find the target person.
| Conditions | Range of angle | Vertical: 0°to 45° |
| Detection number at the same time |
Max. 20 people | |
| Size of people image | Min. size: width 60 pix Recommended size : width 100 pix |
|
| Min. illumination level | Min. illumination level : 10 lux Recommended illumination level : 50 lux |
|
| Mask Area (non-detection area) | Max. 8 areas (polygonal) can be set | |
AI Vehicle Detection

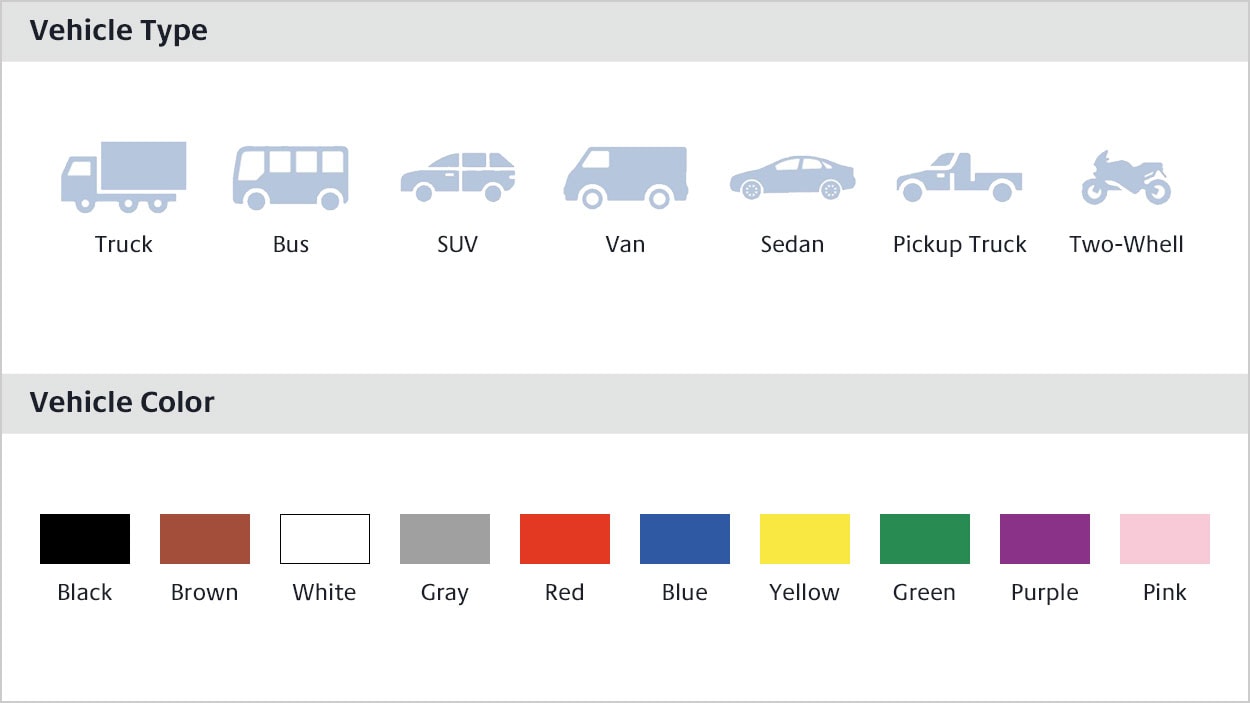

Vehicle characteristics are extracted and classified into useful categories such as type and color. This abundant attribute information can then be searched to easily find the target vehicle.
| Conditions | Range of angle | Vertical: 0 to 90° |
| Detection number at the same time |
Max. 20 vehicle | |
| Size of people image | Min. size: 70 pix for the shorter axis (about 15-20 m ahead) Recommended size: 112 pix for the shorter axis |
|
| Min. illumination level | 5 lux | |
| Mask Area (non-detection area) | Max. 8 areas (polygonal) can be set | |
AI Face Detection
The i-PRO network camera utilizing an AI engine and i-PRO Active Guard realize real-time face recognition without an expensive face recognition server. AI detection enables highly accurate face detection, and is also effective for detection in low lighting, backlit environments, or for detecting faces obscured by masks.
| Range of angle | Horizontal : 0° - 45°, Vertical : 0° - 30° |
| Detection number at the same time | Max. 8 faces |
| Size of face image | Min. size : width 30 pix Recommend : 60 pix |
| Min. illumination level | 100 lux |
| Max. number of cameras | 20 when installed with VMS server PC 60 when installed in dedicated server PC |
| Max. number of watchlist | 1,000 faces |
| Recommended model | WV-S1136, WV-S1536LTN, WV-S2536LTN |
Specifications
Data Sheet
Manuals
User Manual/Operating Instruction
AI Face Detection etc. Operating Instructions (English)
Firmware/Software
Software
![AI Face Detection [Type1]](/products_and_solutions/themes/custom/ipro/assets/images/common/icon/products_documents_icon.jpg){kind=icon}
3. For configuration (detection area etc.), use the latest version of i-PRO configuration tool (iCT).
2. Refer to Installation conditions for applications on i-PRO Network Camera with AI Engine for the below information:
4. For configuration (detection area etc.), use the latest version of i-PRO configuration tool (iCT).
2. Refer to Installation conditions for applications on i-PRO Network Camera with AI Engine for the below information:
4. For configuration (detection area etc.), use the latest version of i-PRO configuration tool (iCT).
Release Note
Other
Technical Document
Compatibility list for extension software (Excel)
Management number: C0103
Compatibility list for extension software (PDF)
Management number: C0103
