In what cases do I use WV-Q105A for camera installation?
- Network Cameras
- Accessories
- Specification

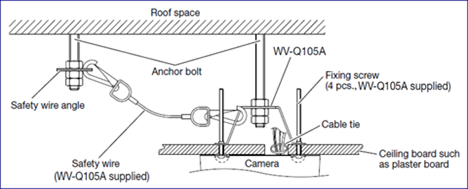

WV-Q105A is used when installing a camera on the low strength ceiling such as ceiling panels.
Put a ceiling panel between the camera and WV-Q105A and fix them with screws.
Then mount WV-Q105A to a ceiling anchor bolt using the main hole on the upper side of WV-Q105A.
Lastly connect the safety wire to another ceiling anchor bolt.
