2.Set up

Please refer to the following manual for details of installation.
Installation Guide

2.1Install on the ceiling

2.1.1Wire from the ceiling and install

2.1.2Install with connecting pipes

2.2Install on the wall

2.2.1Install directly on the wall

2.2.2Install using Wall Mount Bracket

2.3Easy installation

This section describes the settings that support the adjustment of the angle of view when installing the camera.

➣

Live image pages configuration panels>[Detailed setting]>[Camera detailed setting]>[Display]>Advanced Menu>[Easy Setup]>>Click [Easy installation] to display the easy installation page.

1.

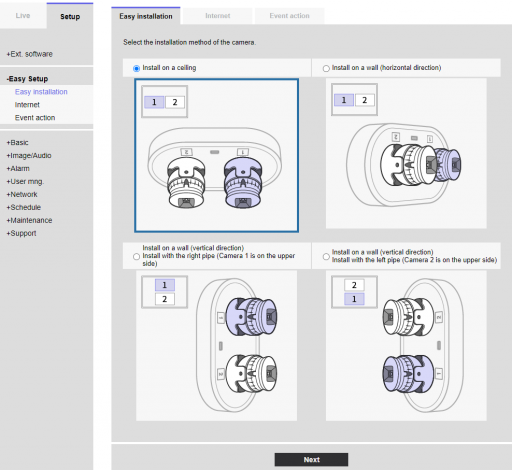

Select the installation method from the four displayed patterns.
The display layout, camera display position, and image rotation are automatically set as shown in the table below according to the selected installation method.



	Display layout	Camera display position	Image Rotation
Install on a celling	Left/right placement	Left: Camera 1 Right: Camera 2	Camera 1: 0° (Off) Camera 2: 0° (Off)
Install on a wall (horizontal direction)	Left/right placement	Left: Camera 1 Right: Camera 2	Camera 1: 180° (Upside-down) Camera 2: 180° (Upside-down)
Install on a wall (vertical direction) Install with the right pipe (camera 1 is on the upper side).^※1	Up/Down placement	Up: Camera 1 Down: Camera 2	Camera 1: 0° (Off) Camera 2: 180° (Upside-down)
Install on a wall (vertical direction) Install with the left pipe (Camera 2 is on the upper side)^※2	Up/Down placement	Up: Camera 2 Down: Camera 1	Camera 1: 180° (Upside-down) Camera 2: 0° (Off)

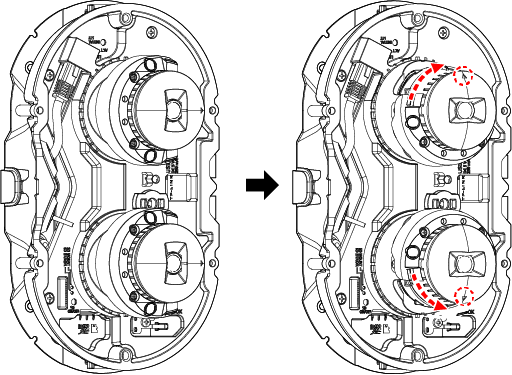

*1 When installing on a wall (horizontal direction), move the camera as shown in the illustration below before adjusting the direction of the camera.

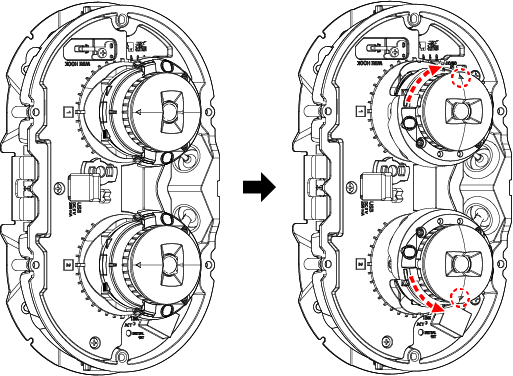

*2 When installing on a wall (vertical direction), move the camera as shown in the illustration below before adjusting the direction of the camera.

1.

While checking the screen, manually adjust the direction of each camera.

2.

Adjust the angle of view using the zoom button.<WV-S85402-V2L><WV-U85402-V2L>

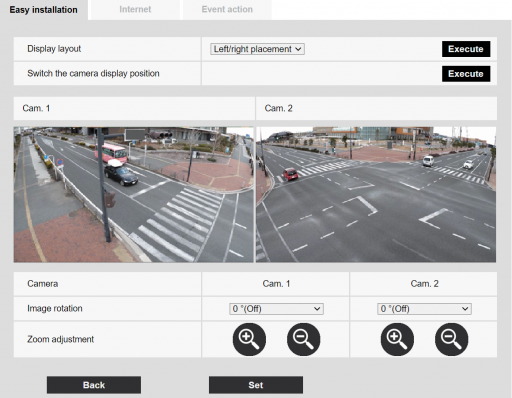

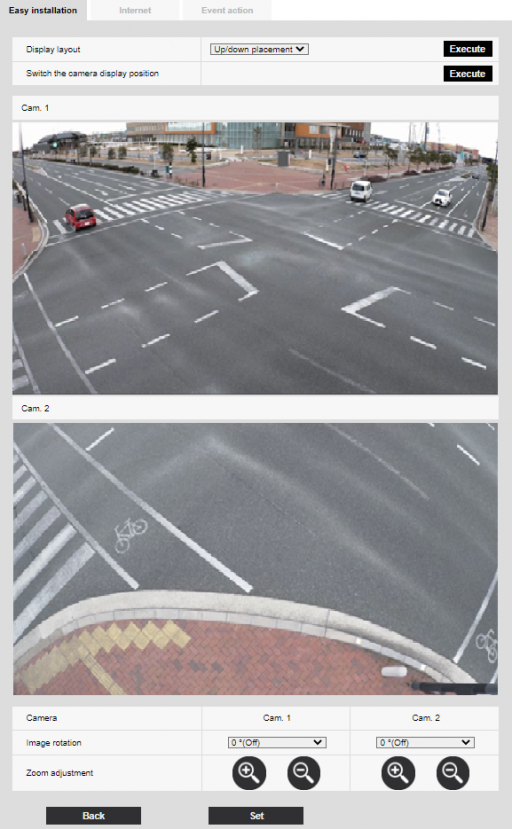

When the display layout is set to the left/right	When the display layout is set up/down
